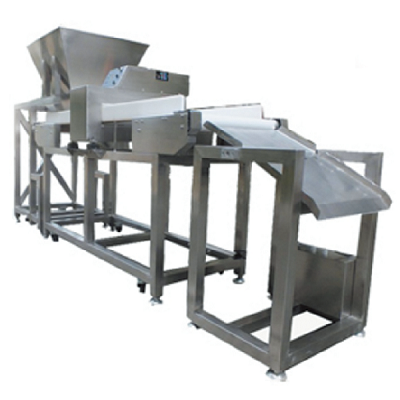

Production Line With THMD-D330 Metal Detection Machine, Metal Detector

Introduction:
The electronic and mechanism design of the series of THMD auto-conveying metal detector is adopted advanced technique in the world, the design is suitable and the appearance is beautiful, THMD-D330 owns the ability of high sensitivity and stable behavior.

Scope of application:
It is mainly used for detecting the metal chips inside the seafood, fishery, noodle, frozen food fruit or dry fruits, sugar, tea, pharmaceutical products and industrial material and products etc.

Product characteristic:
1. all made of Stainless steel , anti-erosion and long life span.
2. Dual channel detecting, one Channel for Fe detecting, the other for non-ferrous metal.
3. Strong transport drive, all the products below 25kg can be conveyed to be checked. Conveying speed adjustable. Speed regulator can be added.
4. Water-Proof, IP65 compliant.
5. Good Anti-interference function: reduce product effect signal form the frozen food and pickled food.
6. The performance of the belt conveyor is complied with the American food sanitation standard (FDA), it can be used for transporting the unpacked food directly.
7. Can be connected to production line.

Technical parameters:
1. Inspection window size:
Normal height of inspection window (mm): 200
Normal width of inspection window (mm): 500
The measures of the inspection window can be designed according customers requirement.
2. Electrical source: AC110V/220V/380V 50/60 Hz.
3. Power: 120W
4. Alarm: Audible and visual alarm, automatic stop.

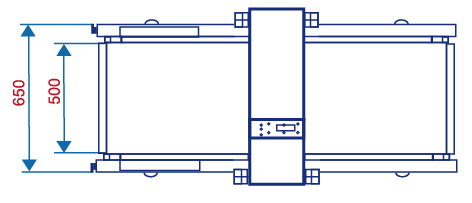

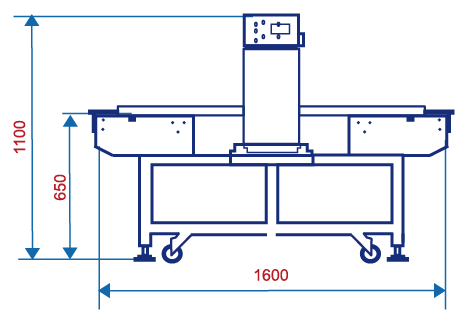

5. Normal Size (mm): 1740(L) X 900(W) X1030(H).
6. Gross Weight: approx. 350kgs Net Weight: Around 300kgs.
Auto-rejection equipment can be installed with the according customer’s requirement.

Production Line With THMD-D330 Metal Detection Machine, Metal Detector

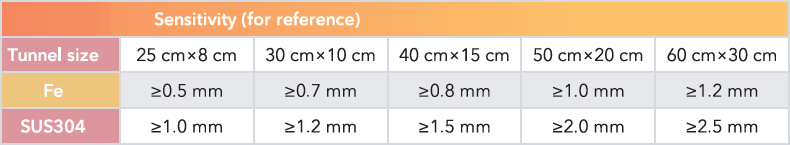

*The actual sensitivity vary according to different products.
*Note: The above sensitivity judged by the machine without carrying any products,
The actual detection sensitivity may vary as the product to be test or  position of metals is different.
