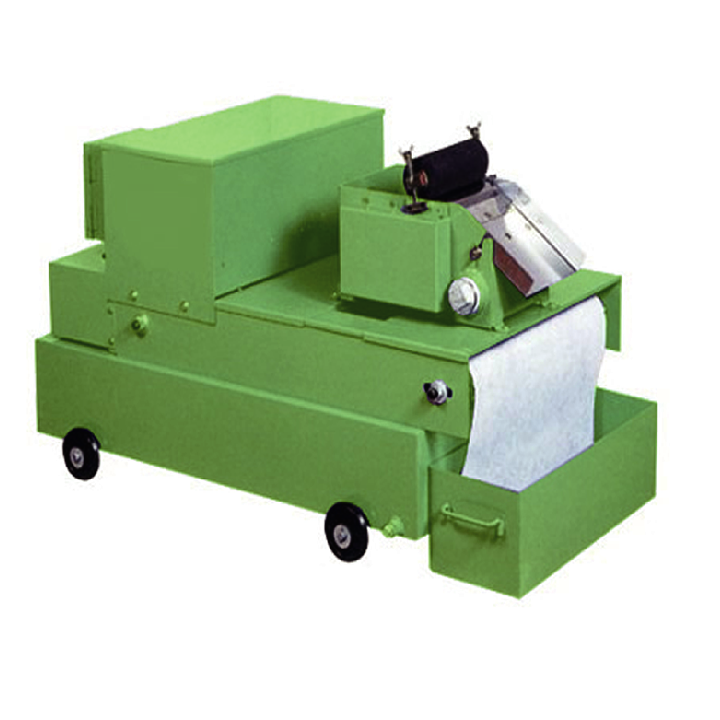

Magnetic Separator & Paper Filter THS-F

Magnet filter is used to purify the cooling fluid, by separating magnetic impurities from it. When the cooling fluid(cutting oil or emulsion) containing magnetic impurities flows into the machine, the magnetic impurities within it will be adsorbed on a magnetic roller which is driven by a gear motor, extruded by a rubber covered roller to get cooling fluid adsorbed on them, and then scraped off the magnetic roller by a board. The left is pure cooling fluid.

The magnetic filter can be used to purify the cooling fluid of flat grinder, refiner, gun drilling machine, honing machine, internal and external grinding machine, centerless grinding machine, thread/gear/bearing grinding machine, line cutter and machining Centre. It can also separate magnetic crushed aggregates from all kinds of other crushed aggregates.

Magnetic Separator & Paper Filter THS-F
