Series LE84 - Lifting Electromagnet For Handling Steel Plates

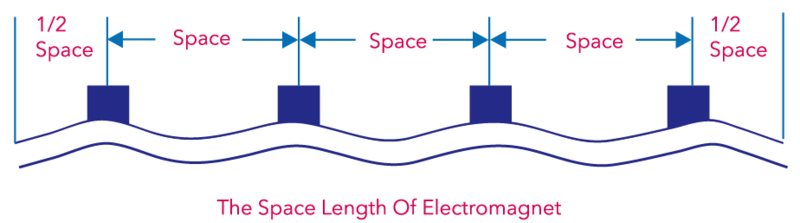

This series of products is specially designed for lifting and transporting medium-thick steel plate. The lifting operation is safe, accurate and quick. Considering the possible bending and deforming may affect safe transportation, please adopt combined electromagnets. As to medium thick plate (6 mm~32 mm), the space length of the electromagnet is usually 3~4 m, the length of extension parts of both ends is half of the space length. According to different lifting pieces, the series is divided into type 350 and type 400. Type 350 is suitable for medium-thick plate factory, shipbuilding factory, machinery manufacturing factory. It adopts a magnet regulating control method and can lift one piece and certain pieces of steel plate. Type 400 is suitable for lifting as many as possible pieces at a time used for lifting and transporting steel plate blow 700oC according to the user’s requirement.

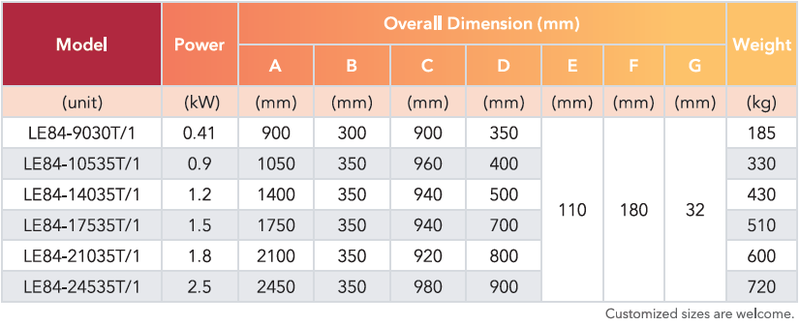

Series LE84-350 - Lifting Electromagnet For Handling Steel Plates

*Rated voltage DC-220V, duty cycle TD-60%
*Note: Rated voltage of LE84-9030T/1 is DC—110V

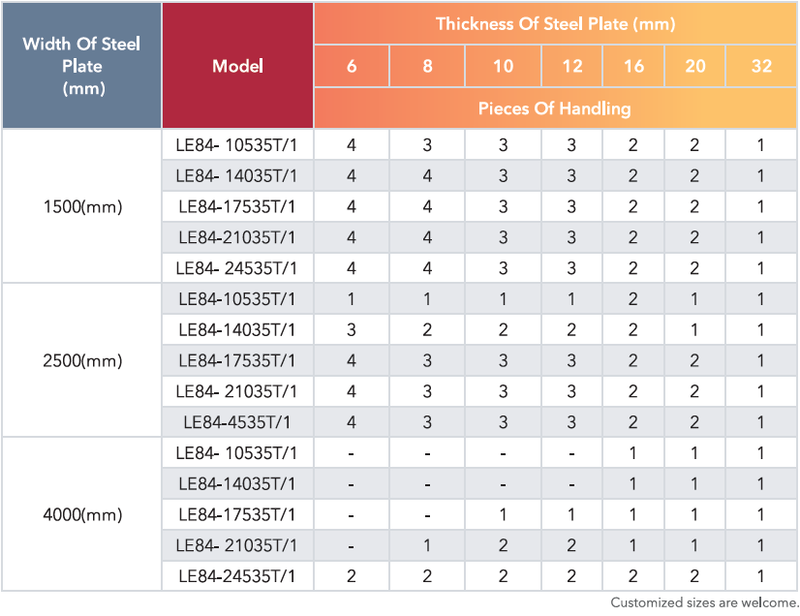

Example For Guaranteed Transporting Pieces

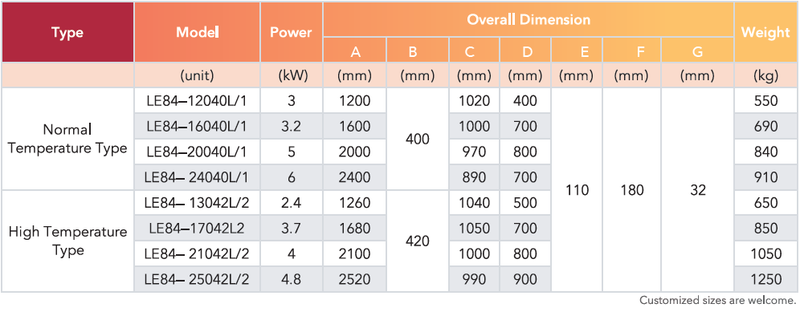

Series LE84-400 - Lifting Electromagnet For Handling Steel Plates

*Rated voltage DC-220V, duty cycle TD-60%

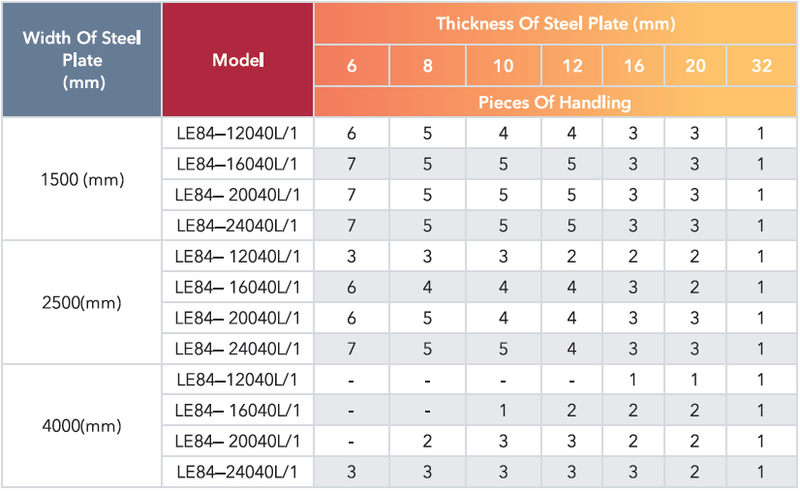

Example For Guaranteed Transporting Pieces
