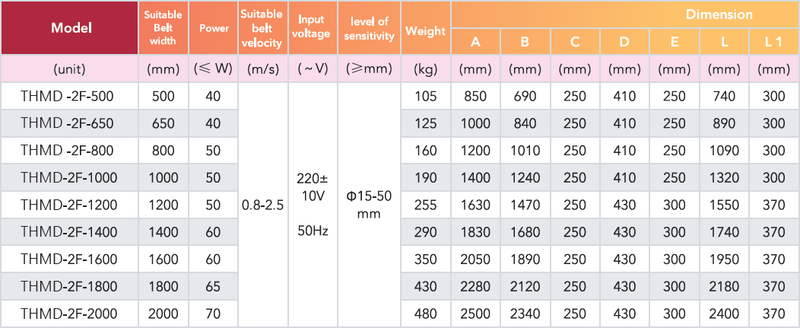

Specifications:
THMD-2F series metal detector use differential transformer sensor and the latest metal detector technology - digital phase shift in circuit design, with stable and reliable performance, high sensitivity, excellent anti-interference ability. The products are mainly used for finding the metal from non-magnetic materials, the detection of harmful metals by induction signal that the metal into the sensor electromagnetic field generated. After induction signal amplification, processing circuit to drive the action.Main features:
Sensitivity is adjustable, high sensitivity is designed to detect large metal, with sound and light alarm.
Detection range: iron, aluminum, stainless steel, alloys, and other metals.
Control output: relay contact pair of normally open, pair of normally closed.

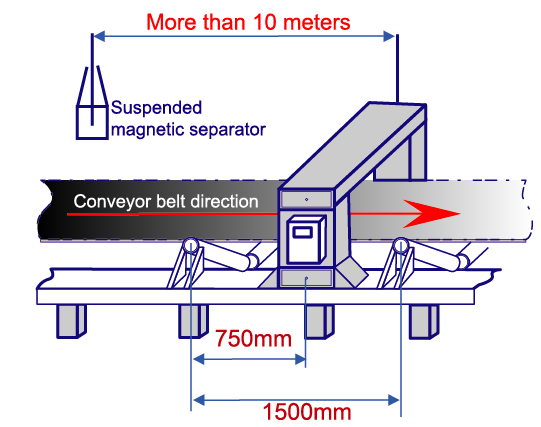

Timing function: after relay pull-in delay release, delay time of 1-10 seconds.Installation Notes:
1. the amplitude of the belt conveyor frame is less than 0.5 mm, can be mounted directly on the belt conveyor frame , if the amplitude more than 0.5mm, should reprovision mounting bracket.
2. the input voltage AC 220V 10V, assemble regulated power supply if the supply voltage exceeds this value.

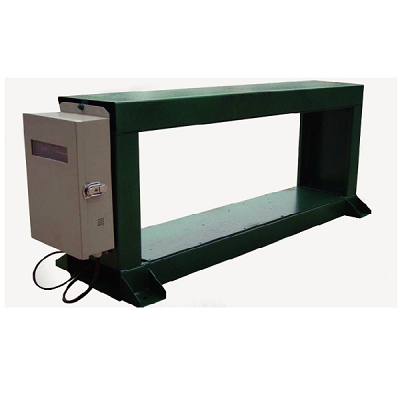

THMD-2F Conveyor Belt Metal Detector
