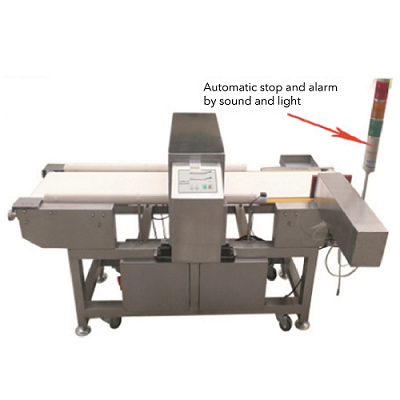

Product description:
The electronic and mechanism design of the series of THMD auto-conveying metal detector is adopted advanced technique in the world, the design is suitable and the appearance is beautiful, THMD-D14 owns the ability of high sensitivity and stable behavior.

Product characteristic:
1. Stainless steel shell , anti-erosion and long life span .
2. The conveyor belt is made of nonpoisonous material.
3. Strong transport drive, all the products below 25kg can be conveyed to be checked.
4. Quick convey speed, it is specially suitable for pipeline operation.
5. When sensor detect metal part, buzzer will sound and conveyor belt will stop.
6. The performance of the belt conveyer is complied with the American food. sanitation standard (FDA), it can be used for transporting the unpacked food directly.
7. Can match the pipeline operation or automatic control device.

Technical parameters:
1. Inspection window size:
Normal height of inspection window(mm): 120.
Normal width of inspection window(mm): 500.
The measures of the inspection window which can be designed according customers requirement.
2. Sensitivity: Diameter of 0.8 mm steel ball, weight of 1.2-1.5g Lead, copper and other globular metal at normal window size.

Parameter:
Electrical source: 220V 50Hz.
Power : 120W.
Alarm: Audible and visual alarm, automatic stop.
Normal Size(mm): 1740(L)X900(W)X1030(H).
Gross Weight: approx. 175 kgs Net Weight: Around 170 kgs.
